典 型 应 用:

      ●纯化水分配系统升温换热器,降温换热器,巴氏消毒换热器。

      ●注射用水分配系统升温换热器,降温换热器。

      ●纯化水和注射用水点换热器。

      ●物料控温换热器。

Typical applications:

      ●Purified water distribution system, heat exchanger, cooling heat exchanger, heat exchanger。

      ●njection water distribution system heating and heat exchanger, cooling and heat exchanger。

      ●Water point heat exchanger for purifying water and injection water。

      ●Material temperature control heat exchanger。

设 计 特 点

      ●符合AsME BPE卫生结构设计标准。

      ●符合GMP要求。

      ●管程最低点排放。

      ●管程无死角。

      ●多导程。

      ●壳程采用膨胀节防止温差过大导致换热器破裂。

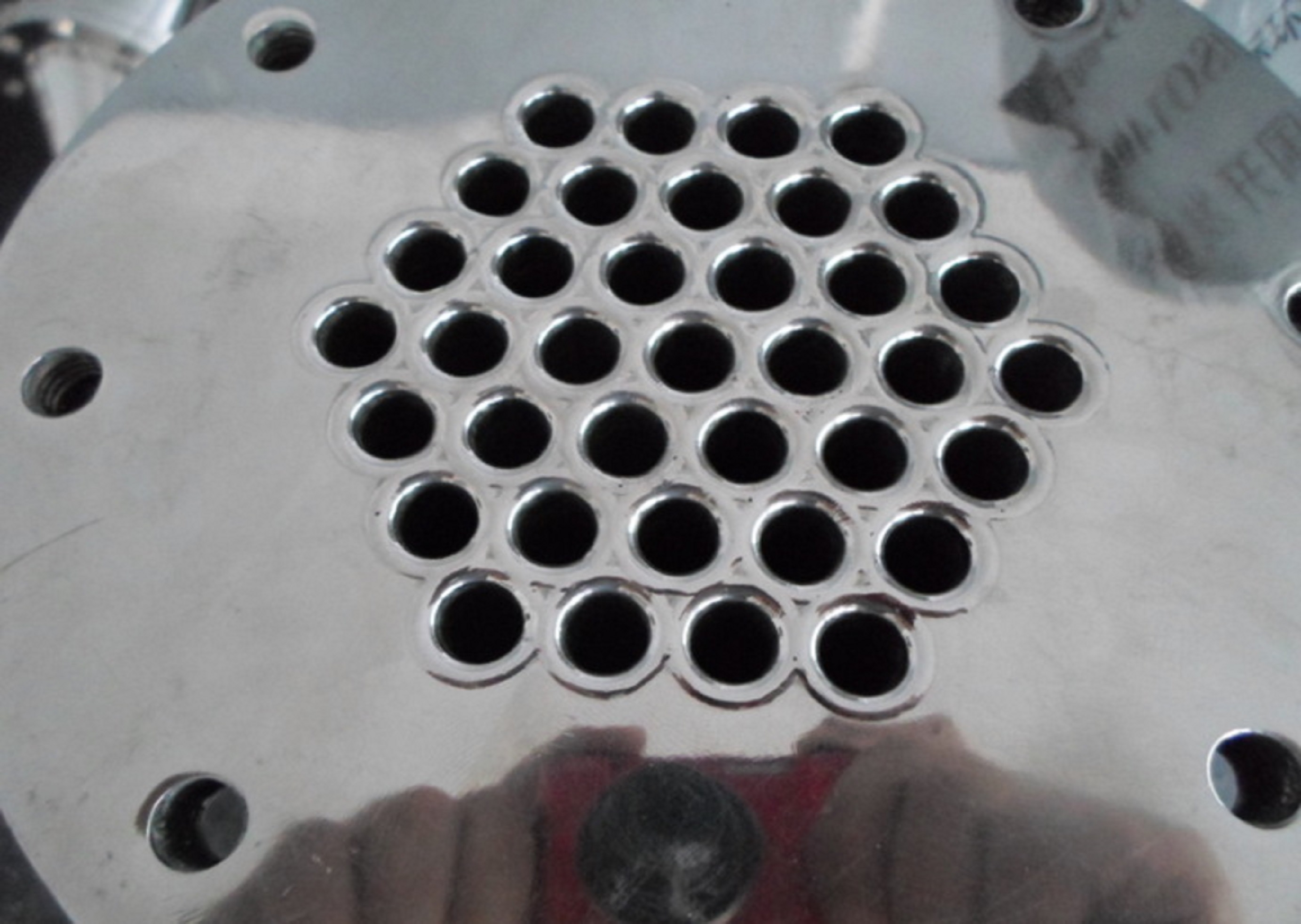

      ●双管板胀接设计防止温差过大导致换热器泄露对高洁净物料的污染。

      ●承压能力高适用于高压运行。

Design features。

      ●Conform to the BPE AsME health structure design standards。

      ●Meet GMP requirements。

      ●Pipe minimum discharge。

      ●No dead ends。

      ●Multi lead。

      ●The shell side of the expansion joints to prevent large temperature difference caused by the heat exchanger rupture。

      ●Design of double tubesheet expanded to prevent excessive temperature difference in the leakage of Gao Jie net material pollution heat exchanger。

      ●Pressure bearing capacity Gao Shi used for high pressure operation。

制 造 特 点

      ●十数年换热器,多效蒸馏水机制造经验

      ●按用户要求制造,传统强度胀接和液压胀接两种方式可选。

      ●尽技术最大可能实现自动焊接。

      ●使用专用设备制作U型管,确保管道最小的非控制变形

      ●表面粗糙度可由Ra0.8至Ra0.3。

      ●严格的质量控制程序。

      ●X射线无损检测。

      ●液压试验测试。

      ●机械抛光和电化学抛光钝化。

      ●表面粗糙度检测。

      ●满足GMp认证要求的文件。

      ●完善的出厂前验收测试。

Manufacturing characteristics

      ●More than a decade of heat exchanger, multi effect distilled water machine manufacturing experience。

      ●According to the requirements of users, the traditional strength expansion and hydraulic expansion two ways。

      ●Do the best technology possible to achieve automatic welding。

      ●Making U tube with special equipment to ensure the least non controlled deformation of the pipe。

      ●Surface roughness can be from Ra0.8 to Ra0.3。

      ●Strict quality control procedures。

      ●X - ray nondestructive testing。

      ●Hydraulic test and test。

      ●Mechanical polishing and electrochemical polishing passivation。

      ●Surface roughness detection。

      ●File to meet the requirements of GMp certification。

      ●Perfect ex factory acceptance test。

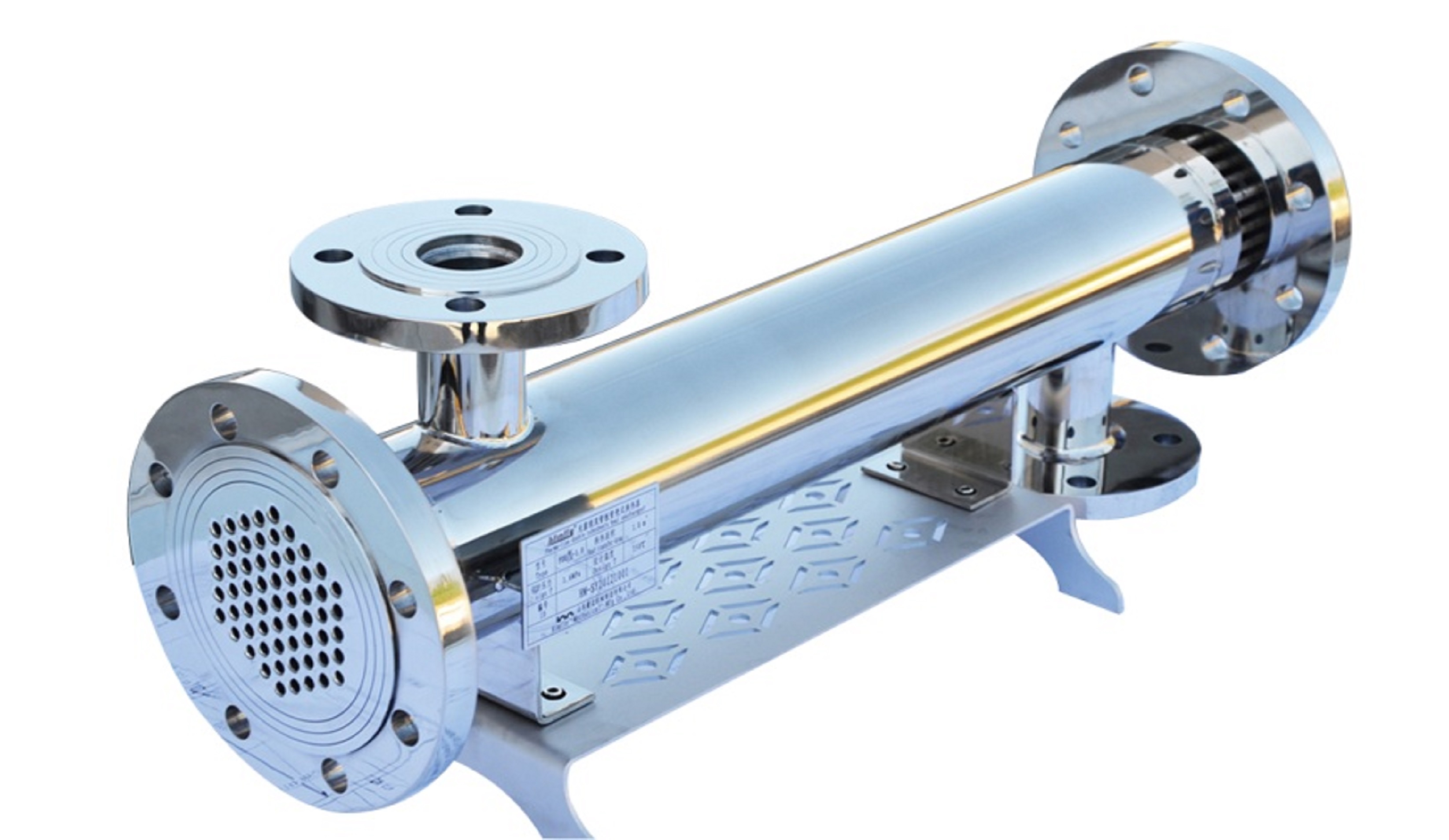

直 管 式 换 热 器

      ●发现泄露 可以拆除法兰进行检测

      ●管束无弯曲。

      ●可设计多导程。

      ●全排空设计

Straight tube heat exchanger

      ●Found leaks can be removed to detect the flange。

      ●No bending of tube bundle。

      ●Multi lead design。

      ●Full evacuation design。

U 型 换 热 器

      ●u型管设计,效率更高

      ●价格相对较低。

      ●无需膨胀节设计。

      ●全排空设计

      ●管束与简体可拆卸。

    更多技术细节>>
