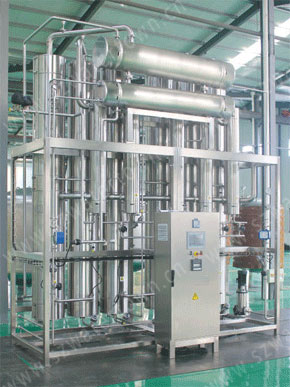

      电 加 热 型 蒸 馏 水 机

Electric heating type distilled water machine



      产品特点

      (1)整个设备采用316L不锈钢制成,工作表面经过酸洗和钝化处理。

      (2)管道系统采用镜面抛光0.6μmRa的316L不锈钢管,自动轨迹焊接,洁净法兰和制药级的垫圈连接。

      (3)保温采用岩棉,外覆304不锈钢亚光处理保护层,架体为不锈钢。

      (4)采用一体化电加热设计,无需工业锅炉,产水100L/h~500L/h。采用全自动触摸屏控制,电热釜与整机融为一体。可随时生产蒸馏水。采用双管板蒸发器,独有专利热回收技术,单位功率产水量是普通电热蒸馏水机的五倍,单位耗电量是国内同机型的二分之一,节能效果非常显著。是目前行业内技术最先进的产品。

      (5)按最新的国际药典和cGMP,FDA标准进行设计和制造。

      Product features

      (1)The whole equipment is made of 316L stainless steel, the working surface after pickling and passivation treatment.。

      (2)The pipeline system uses a mirror polished 0.6 316L mRa stainless steel pipe, automatic track welding, clean flange and pharmaceutical grade gasket connection

      (3)The insulation rock wool, coated 304 stainless steel polishing treatment protective layer, the frame body is made of stainless steel。

      (4)Adopt integrated electric heating design, no need of industrial boiler, water producing 100L/h~500L/h。Full automatic touch screen control, the electric kettle and the whole machine. Distilled water can be produced at any time. The double tube plate evaporator, a unique patent heat recovery technology, power unit yield is five times as large as that of the ordinary electric heating distilled water machine and unit electricity consumption is the same type of, energy-saving effect is very significant. Is the most advanced technology products in the industry。

       (5)According to the latest international pharmacopoeia and FDA, cGMP standards for design and manufacture。

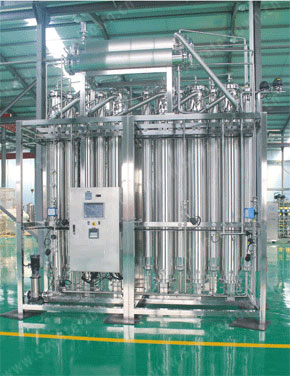

    S 型 蒸 馏 水 机S type distilled water machine

      技术特点

           (1)所有与原料水,纯蒸汽接触的部位均为316L低碳不锈钢制造。

           (2)结构设计:

               ◆立式循环蒸发器。

               ◆卫生结构和连接无死角。

               ◆管路斜度利于最低排放。

               ◆系统带有原水泵,使操作稳定,结构紧凑,节省成本。

               ◆可拆性结构,换热管束可整体更换,也可单独更换。

           (3)仪表自动检测产品质量,不合格自动排放。

           (4)按标准程序进行酸洗和钝化处理,可根据要求进行电解抛光

           (5)外置预热器,冷凝器和I效蒸发器为双管板设计,有效消除系统中不同级别介质一旦泄露造成交叉污染。

           (6)热表面的保温层和304材质的包裹层,保障工作环境。

           (7)设备上无运动部件,运行状态安静,安全,可靠。

           (8)在整机测试车间,按照确定程序,模拟实际工作环境进行整机测试。

           (9)提供从设计阶段到现场SAT全过程的项目周期文件证明和验证文件草案。

           (10)按最新的国际药典和cGMP,FDA标准进行设计和制造。

      Technical characteristics

           (1)All the parts that are in contact with raw water are 316L low carbon stainless steel。

           (2)Structure design:

               ◆Vertical circulation evaporator。

               ◆Health structure and connection without dead angle。

               ◆Pipeline slope is conducive to the minimum discharge。

               ◆System with raw water pump, so that the operation is stable, compact structure, saving cost。

               ◆Detachable structure, heat exchanger tubes can replace the whole, also can be replaced individually。

           (3)Instrument automatic detection of product quality, automatic discharge。

           (4)According to the standard procedures for pickling and passivation treatment, according to the requirements of the electrolytic polishing。

           (5)External heater, condenser and a I-Effect evaporator for double tube sheet design, effectively eliminate system at different levels of the media once the leak caused by cross contamination。

           (6)Thermal surface of the insulation layer and the 304 material of the package, to protect the working environment。

           (7)No moving parts on the equipment, running state quiet, safe and reliable。

           (8)In the whole test workshop, according to the determination procedure, the actual working environment is simulated and tested。

           (9)Provide a draft of the project cycle documentation certification and validation document from the design phase to the site SAT。

          (10)According to the latest international pharmacopoeia and FDA, cGMP standards for design and manufacture。

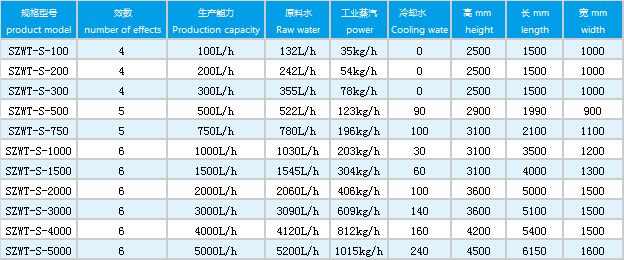

       S型蒸馏水机技术参数:

    更多技术细节>>
