海水淡化



产品特性

      ◆采用国际最先进的反渗透分离技术,产水优,能耗少,操作简单,维护方便。

      ◆配备先进控制仪表,运行平稳,安全。

      ◆体积小,重量轻,占地省,安装方便,适应性强,可以在狭窄的机舱,甲板,船用舱,过道等狭窄空间安装。

      ◆电源适用广泛(AC220/380V,50Hz)。

      ◆产品配置高压柱塞泵,质量稳定,产出淡水符合国家饮用水质标准。

      ◆预处理装置采用多路阀技术,手动清洗,灵活方便。

      ◆选用先进的性价比更高的产品和设备,节约投资,减少占地,尽量节省能耗。



      ◆饮用水装置模块化设计,根据投资,人口,位置选择组合。

      ◆提高自动化水平,减少日常维护检修工作,改善人工操作条件。

      ◆海水处理具有脱盐率高,能量回收装置节省能耗。降低使用成本。



Product characteristics

      ◆Adopt the international most advanced reverse osmosis separation technology, the water is superior, the energy consumption is little, the operation is simple, the maintenance is convenient。

      ◆Equipped with advanced control instrument, running smoothly and safely。

      ◆Small size, light weight, covers an area of province, easy to install, adaptable, can be in the narrow cabin, deck, boat, and other narrow space, such as the installation。

      ◆Wide range of power supply(AC220/380V,50Hz)。

      ◆Product configuration high pressure piston pump, quality stability, the output of fresh water in line with national standards for drinking water quality。

      ◆Pretreatment device using multi way valve technology, manual cleaning, flexible and convenient。

      ◆Selection of advanced cost-effective products and equipment, save investment, reduce the area, as far as possible to save energy consumption。



      ◆The modular design of drinking water device, according to the investment, population, location selection combination。

      ◆Improve the level of automation, reduce the daily maintenance and repair work, improve the conditions of manual operation。

      ◆Seawater treatment has high desalination rate, energy recovery device to save energy. Reduce the cost of use。



技术参数







主要技术参数

      ◆适用范围:海水。

      ◆出水水质:根据客户需求,达到饮用水水质标准或工业用水等其它水质要求。

      ◆回收率:35%~50%。

      ◆适应海水温度:2.0~30.0℃。

      ◆吨淡水电耗:3.0 kW•h/m3以下。

Main technical parameters

      ◆Scope of application: sea water。

      ◆Water quality: according to customer demand, to meet the requirements of drinking water quality standards or industrial water and other water quality requirements。

      ◆Recovery rate: 35% ~ 50%。

      ◆Adaptation sea water temperature: 2 ~ 30。

      ◆Tons of fresh water consumption: 3 kW - h/m3。

海水淡化系统特点

      ◆低能耗:具有各种能量回收系统的使用经验,所 采用的高效的能量回收系统和整体优化设计使得能量消耗大大降低。

      ◆使用寿命长:严谨的工艺设计和精良细致的设备选材,确保了系统较 长的使用寿命和较低的维护成本 。

      ◆出水水质稳定:先进的水质检测控制和精良的系统维护方案确保出水水质长期稳定。

      ◆低能耗:具有各种能量回收系统的使用经验,所 采用的高效的能量回收系统和整体优化设计使得能量消耗大大降低。

      ◆使用寿命长:严谨的工艺设计和精良细致的设备选材,确保了系统较 长的使用寿命和较低的维护成本 。

      ◆适用的海水温度范围广:海水淡化装置由于采用了专有技术,使其可在2℃-30℃的水温范围内满负荷运行,不会因温度降低而导致产水量下降,保证了用户在任何条件下均可得到额定产水量。

Characteristics of seawater desalination system

      ◆Low energy consumption: the use of a variety of energy recovery system experience, the use of efficient energy recovery system and the overall optimization design makes the energy consumption greatly reduced。

      ◆Long service life: rigorous process design and sophisticated equipment selection, to ensure that the system is more Long service life and lower maintenance costs. 。

      ◆Water quality stability: advanced water quality testing and control and sophisticated system maintenance program to ensure long-term stability of the effluent water quality。

      ◆Low energy consumption: the use of a variety of energy recovery system experience, the use of efficient energy recovery system and the overall optimization design makes the energy consumption greatly reduced。

      ◆Long service life: rigorous process design and sophisticated equipment selection, to ensure that the system is more Long service life and lower maintenance costs. 。

      ◆The applicable temperature range is wide: seawater desalination device due to the use of proprietary technology, which can make the temperature in the range of 2 DEG -30 DEG in full load operation, not because of the temperature which lead to reduced water production decline, ensure that the user in any condition can be rated water production。

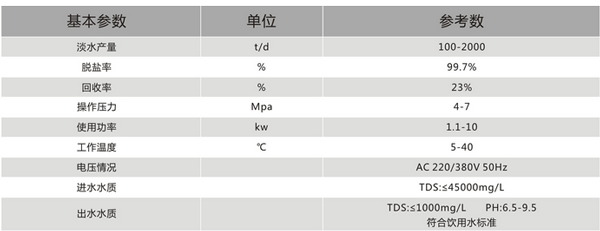

性能参数:

      ◆淡水产量:≥150 L/H。

      ◆脱盐率: ≥98%。

      ◆回收率: ≥23%。

      ◆操作压力:4~6.5MPa。

      ◆使用功率:1.5KW.

      ◆工作温度:5~40°C

performance parameter:

      ◆Water production: 150 L/H。

      ◆Desalination rate: 98%。

      ◆The recovery rate: 23%。

      ◆Operating pressure: 4~6.5MPa。

      ◆Use power: 1.5KW.

      ◆Operating temperature: 5~40 degrees C

系统特点:

      ◆采用反渗透分离技术进行海水淡化脱盐,该技术是迄今国际上公认的最先进的海水淡化技术。

      ◆设备严格按照CBT3751-1995 船舶行业标准要求生产,符合CCS 船级社的使用要求,可在复杂的船舶航行条件下稳定使用。

      ◆可在常温(5-40℃)下进行操作,产水优、能耗少、成本低。

      ◆可根据客户需求进行设计,实现体积小,重量轻,占地省,安装方便,适应性强,可以在狭窄的机舱、甲板、船用舱、过道等空间安装。机架管路、管件均由316(高压)不锈钢和耐腐蚀PPR材料(低压)制作。电源适用广泛(220-380-415V/50HZ/60HZ/三相)。

      ◆预处理装置采用多路阀技术,避免频繁清洗及环境污染。

      ◆操作简单,维护方便,有电和海水,启动后立即产出淡水。

      ◆专业人员指导设备安装、调试、操作

System characteristics:

      ◆Desalination by reverse osmosis separation technology, the technology is recognized as the most advanced desalination technology in the world.。

      ◆Equipment in strict accordance with the requirements of the CBT3751-1995 shipbuilding industry standard production, in accordance with the requirements of the use of CCS classification society, can be used in complex ships sailing conditions。

      ◆Can be operated at room temperature (5-40 degrees C), the advantages of water production, low energy consumption, low cost。

      ◆According to customer demand for design, small size, light weight, covers an area of the province, convenient installation, adaptability, can be in the narrow cabin, deck, ship cabin, aisle and other space installation. Rack piping, pipe fittings are made of 316 (high pressure) stainless steel and corrosion resistant PPR material (low pressure) production. Power supply suitable for a wide range (220-380-415V/50HZ/60HZ/)。

      ◆Pretreatment device using multi way valve technology to avoid frequent cleaning and environmental pollution。

      ◆Operation is simple, easy to maintain, there is electricity and sea water, immediately after the start of the output of fresh water。

      ◆Professionals to guide the installation, commissioning, operation
