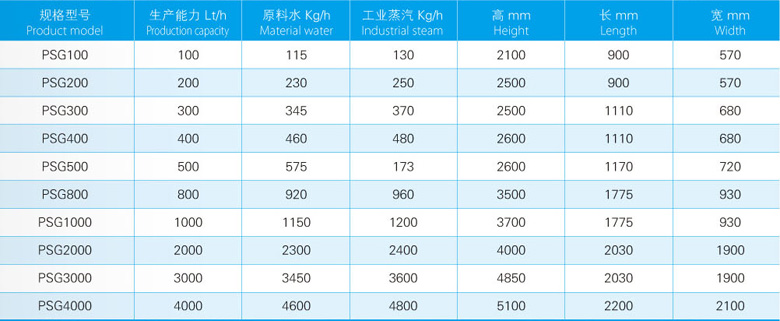

标准设备型号表显示的是在纯蒸汽压力为3bar,工业蒸汽为6bar的情况下的设备生产能力，单位是公斤/小时。如果要获得某种型号设备的实际生产能力，则必须根据实际工作压力，在标定生产能力上乘上一个转换系数。
Production capacity：
Standard equipment model table shows the production capacity of equipment in the case of pure steam pressure for 3bar, industrial steam for 6bar, unit is kg / h. If you want to obtain the actual production capacity of a certain type of equipment, it must be based on the actual working pressure, in the calibration of the production capacity of a conversion factor.
型 号 选 择 举 例：
● 工业蒸汽压力: 7bar
● 所需纯蒸汽压力：2bar
● 纯蒸汽最高需求量：500公斤/小时
● 转换系数：1.7
● 标定输出需求：500/1.7=294公斤/小时
● 选择型号：PSG300DTS
Model selection example：
● Industrial steam pressure：7bar
● pure steam pressure needed：2bar
● The highest demand of pure steam：500kg/h
● Conversion coefficient:1.7
● Specified output needs:500/1.7=294kg/h
● Model selected:PSG 300 DTS
公 用 工 程 需求;
● 不含杂质和腐蚀性物质的工业饱和蒸汽；最大压力为9bar
● 讲料子要求为去离子水，无硅石，碌，胺，挥发性物质等等，压力要求为1-2bar
● 供电标准：根据客户要求。
● 干燥，无油，干净的压缩空气，最小压力要求为6bar。
public work demand：
● Industrial saturated steam without impurities and corrosive materials,the maximun pressure is 9 bar
● The water for injection is required to be the deionized water without sillica,chlorine,amine and volatile substance,etc.The pressure required is 1-2bar
● Power supply standards:according to the clients'requirements。
● Dry,oil-free and clean compressed air,the minimum pressure required is 6 bar
技 术 参 数： Technical parameters of Clean Steam Generator
工业蒸汽进气工作压为：0.3MPa,纯蒸汽工作压力：0.15-0.2MPa
Intel pressure of industrial steam is 0.3MPa and the purse steam working pressure is 0.2Mpa
