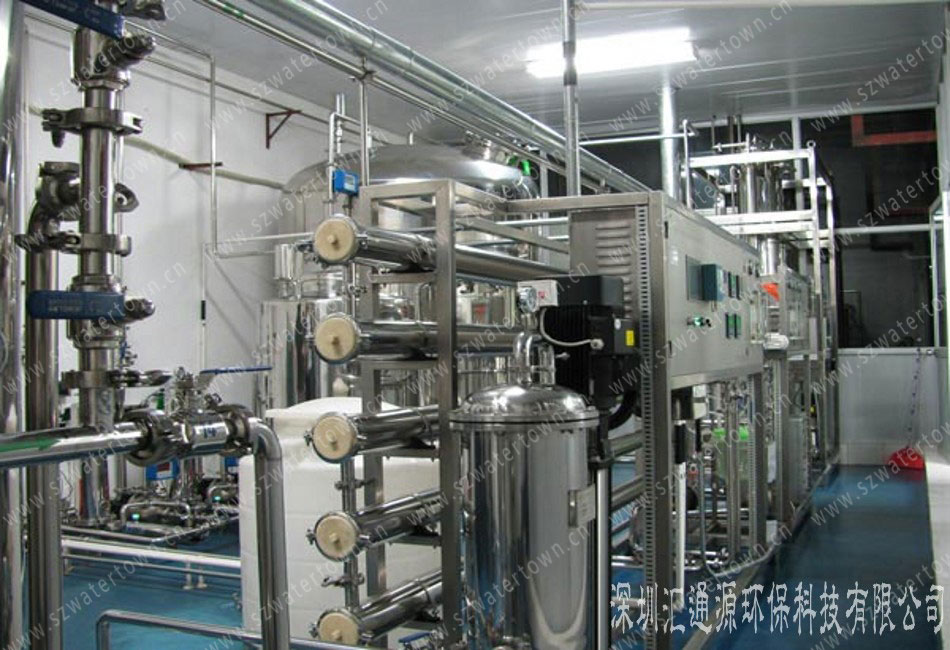

纯净水设备

      简单来说就是生产纯净水的设备。而纯净水又被我们广泛用于:生活饮用、化工、医疗、养殖、种植、食品、饮料等。

Pure water equipment

      Simple is the production of pure water equipment. And the pure water is widely used in our life: drinking, chemical, medical, culture, cultivation, food, beverage, etc。

技术特点

      (1)反渗透是在室温条件下,采用无相变的物理方法将含盐水进行脱盐、除盐。超薄复合膜元件的脱盐率可达到99.5%以上,并可同时去除水中的胶体、有机物、细菌、病毒等。

      (2)采用进口反渗透膜,脱盐率高,使用寿命长,运行成本低廉;

      (3)采用全自动预处理系统,实现无人化操作;

      (4)采用进口格兰富增压泵,高效率低噪音,稳定可靠;

      (5)在线水质监测控制,实时监测水质变化,保障水质安全;

      (6)全自动电控程序,还可选配触摸屏操作,使用方便;

      (7)切合当地水质的个性化设计,全方位满足需求。

      (8)设备占地面积小,需要的空间也小。

      (9)反渗透装置自动化程度高,运行维护和设备维护工作量很少。

      (10)水的处理仅依靠水的压力作为推动力,其能耗在许多处理工艺中最低。

      (11)不用大量的化学药剂和酸、碱再生处理,无化学费液排放,无环境污染。

      (12)反渗透可以连续运行制水,系统简单,操作方便,产品水质稳定。

技术特点

      (1)he reverse osmosis is a physical method with no phase transition at room temperature. The desalination rate of ultrathin composite membrane element can reach above 99.5%, and can also remove colloid, organic matter, bacteria, virus and so on。

      (2)Reverse osmosis membrane, high desalination rate, long service life, low running cost;

      (3)Automatic pretreatment system is adopted to realize unmanned operation.;

      (4)Imported Grundfos booster pump, high efficiency and low noise, stable and reliable;

      (5)Online water quality monitoring and control, real-time monitoring of water quality change, to ensure the safety of water quality;

      (6)Automatic control procedures, can also be optional touch screen operation, easy to use;

      (7)To meet the local water quality of the personalized design, to meet the needs of all.

      (8)Equipment covers an area of small, the need for space is small.

      (9)High degree of automation, operation and maintenance and equipment maintenance workload is very little。

      (10)Water treatment depends only on water pressure as a driving force, and its energy consumption is the lowest in many treatment processes.。

      (11)ithout a large number of chemicals and acid, alkali regeneration treatment, no chemical liquid discharge, no environmental pollution。

      (12)Reverse osmosis can run continuously to make water, the system is simple, the operation is convenient, the product water quality is stable。



工艺流程

      原水→原水加压泵→多介质过滤器→活性炭过滤器→软水器→精密过滤器→一级反渗透→PH调节→中间水箱→二级反渗透→纯水箱→纯水泵→微孔过滤器→用水点。

technological process

      Raw water, raw water pressure pump, multi media filter, activated carbon filter, water softener, precision filter, a reverse osmosis, pH adjustment, intermediate water tank, the secondary reverse osmosis, pure water tank, water pump, porous filters, water。

工艺系统

预处理系统

      作为纯净水生产的依托是非常重要的。所以要生产纯净水一定是要选择原水水质比较好的地方。如山泉、深井等。在这里牵扯到一个非常重要的指数就是“电导率”。一般而言电导率,越低。水越纯净。水处理工艺都是采用的反渗透系统。经过处理后的水一般能达到90%——99%的脱盐率。下面我介绍一下这个系统的组成部件。

      (1)原水泵。

      原水泵是为原水预处理系统提供原水压力的作用。如果原水有压力就完全可以不用这个设备。一般要求原水压力>=0.3MPa。

      (2)原水箱。

      原水箱的作用更简单,是储存原水用的。这是怕原水万一供不上作一个中转(通常添加浮球开关是整个系统自动化程度更高)。

      (3)采用石英砂滤料以除去原水中较大颗粒的悬浮物、泥沙、杂质等,降低水的混浊度。而且还可以使水中的有机物质、细菌、病毒等随着浊度的降低而被大量去除,并为滤后消毒创造了良好条件。

      (4)利用活性碳的吸附能力有效地吸附原水中的有机物、游离性余氯、胶体、微粒、微生物、某些金属离子及脱色等。

      (5)软化系统(加药系统)。

      利用离子树脂的交换性能,除去原水中的钙镁离子,以达到防止后继设备结生水垢的影响,但是操作起来费工,费料。改为加药系统直接向里添加阻垢剂。

      主要解决以下几个问题

      (1)防止有机物污染;

      (2)防止胶体物及悬浮固体微粒堵塞;

      (3)防止氧化性物质对膜的氧化破坏;这样可保证反渗透装置稳定运行以及正常的使用寿命。

      (4)防止反渗透膜面结垢CaCO3、CaSO4、SrSO4、CaF2、SiO2、铁、铝氧化物等在膜面沉积

Pretreatment system

      As the production of pure water is very important to rely on. So to produce pure water must be to choose a better place for raw water quality. Such as spring, deep well. Here is a very important index is the conductivity". Generally the electrical conductivity, the lower the. The more pure water. Water treatment technology is the use of reverse osmosis system. After treated water can generally reach 90% - 99% of the desalination rate. Let me introduce the components of this system。

      (1)Raw water pump。

      he raw water pump is the function of supplying the raw water pressure to the raw water pretreatment system. If there is pressure on the raw water can not use this equipment. General requirements for raw water pressure >=0.3MPa.

      (2)Raw water tank.

      The role of the original water tank is more simple, it is used for storage of raw water. This is afraid of water in case of a transfer (usually add a floating ball switch is a higher degree of automation of the whole system)。

      (3)The quartz sand filter material is adopted to remove the suspended matter, sediment, impurities, etc. in the raw water, so as to reduce the turbidity of the water. But also the organic matter, bacteria, viruses, etc. along with the reduction of turbidity and a lot of removal, and to create a good condition after the filter disinfection。

      (4)Effectively adsorb organic matter in raw water by activated carbon adsorption capacity, free chlorine, colloid, particles, microorganisms, some metal ions and decoloring。

      (5)Softening system (dosing system)。

      The ion resin exchange capacity, to remove calcium and magnesium ions in the water, to prevent subsequent equipment node scale effect, but the operation is labor, material fee. Instead of dosing system directly to add inhibitor。

      Mainly solve the following problems

      (1)Prevent organic pollution;

      (2)Preventing the clogging of colloidal particles and suspended solid particles;

      (3)To prevent oxidative damage to the membrane, which can ensure the stable operation of the reverse osmosis device and the normal service life。

      (4)To prevent the reverse osmosis membrane fouling CaCO3, CaSO4, SrSO4, CaF2, SiO2, iron, aluminum oxide, and so on in the membrane surface deposition。

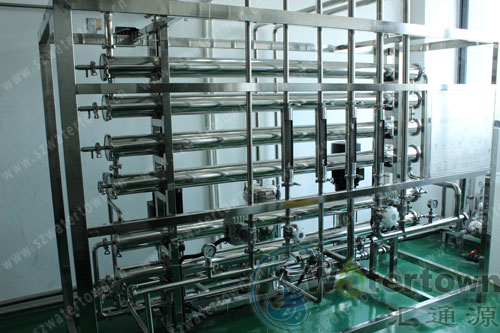

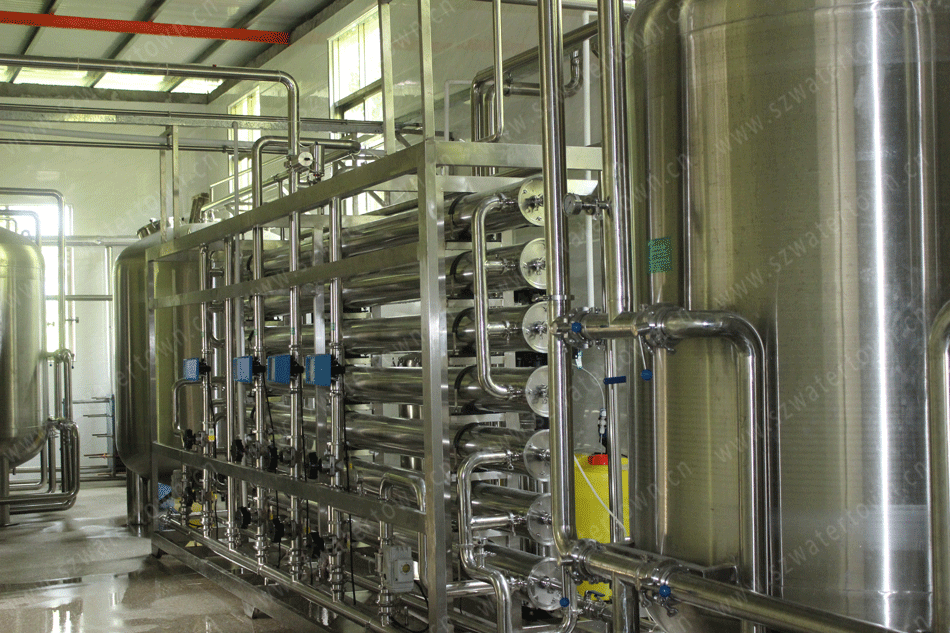

反渗透系统

      反渗透技术在纯净水设备中的成功应用,对我国饮用水提供了很好的发展空间。反渗透技术的实现完成需要多个系统技术来配合实现。

      (1)被处理水

      预处理系统针对被处理水做出简单的水质过滤。是被处理水最大程度的接近反渗透技术对水质的要求。在被处理水当中,如果不进行预处理,那么在进行反渗透处理的时候,会由于某些杂志或者高强行腐容易对反渗透膜造成损坏和堵口。

      (2)预处理系统

      被处理水可以是污水、自来水、河水、地下水等多种水源。我们通常是采用了自来水和地下水作为被处理水来进行反渗透处理,水质相对来说比较感情,污染程度程度低,处理效率快。。

      (3)高压水泵

      整个反渗透的水处理过程,需要一定压力。高压水泵通过对整个水处理系统提供压力,保证谁在通过膜孔时的速度和供水要求。高压水泵必须采用了专用的不锈钢材质的耐腐蚀的水泵,因为水处理溶液中含有的酸碱性物质会发生腐蚀现象,如果抗腐蚀能力弱,被腐蚀,就会造成水的如此污染。

      (4)智能控制系统

      新型的反渗透设备都会配备专用的PLC智能化控制系统。通过智能系统检测温度表、压力表等仪表盘的数据变化。通过计算机控制,配有模拟屏。能够控制整套反渗透设备的正常运行。并且根据水处理的需要进行人工设定参水,根据设备的运行状况发出报警提示。

      (5)密封水箱储水

      反渗透设备完成水处理后,要通过专业的水箱对处理完成的水进行收集。水箱要干净、防腐,避免对水产生污染。

Counter-infiltration system

      he successful application of reverse osmosis technology in pure water equipment provides a good development space for our country's drinking water. Implementation of reverse osmosis technology to complete the need for multiple systems technology to achieve。

      (1)Treated water

      Pretreatment system for the treatment of water to make a simple water filtration. Is to be treated water to the greatest degree of proximity to the reverse osmosis technology for water quality requirements. In the treatment of water, if not pretreatment, then in the reverse osmosis process, will be due to some magazines or high strength row rot easily damaged and blocking the reverse osmosis membrane。

      (2)Pretreatment system

      Treated water can be sewage, tap water, river water, groundwater and other water sources. We usually use tap water and groundwater as the treated water to reverse osmosis treatment, the water quality is relatively emotional, the degree of pollution is low, the processing efficiency is fast.

      (3)High pressure water pump

      The whole reverse osmosis water treatment process, need a certain pressure. High pressure water pump through the entire water treatment system to provide pressure to ensure that the speed and water requirements in the water through the membrane. High pressure pump must be used special stainless steel corrosion resistant pump, because water treatment solution containing acid substances occur corrosion phenomenon, if the weak ability to resist corrosion, corrosion, will cause water so polluted.

      (4)intelligent control system

      he new reverse osmosis equipment will be equipped with a dedicated PLC intelligent control system. Through the intelligent detection system of thermometer, pressure gauge and instrument panel data changes. Through computer control, equipped with analog screen. Can control the normal operation of the whole set of reverse osmosis equipment. According to the need of water treatment, the water can be set according to the operation condition of the equipment.。

      (5)Seal water tank

      Reverse osmosis equipment to complete the water treatment, to be completed by the professional water tank for the collection of water treatment. Water tank to be clean, anti-corrosion, to avoid pollution of water。
